Dot Matrix Printers

Imagine a printer that sounds like a tiny hammer tapping paper. That’s how a dot matrix printer works. It may not be silent or pretty, but it’s tough and reliable. People still use them today because they are useful in ways modern printers just can’t match. Dot matrix printer is a type of printer.

What Is a Dot Matrix Printer?

A dot matrix printer is a type of printer that makes letters, numbers, and pictures by using small metal pins. These pins hit an ink ribbon and press tiny dots onto the paper. The dots join together to form words or images. That’s why it’s called a “dot matrix” because everything is made from a pattern of dots.

Dot matrix printers are strong and can print on multi-copy paper, which makes them useful for banks, billing counters, and workplaces that need lots of copies. They may look old, but they still get the job done in many places.

History of Dot Matrix Printers

The history of dot matrix printers begins in the early 1970s. These printers were among the first types of early computer printers used with mainframes and personal computers. Their main job was to turn digital data into printed text on paper using dots.

The invention of dot matrix technology is often credited to Centronics in 1970. Their 7-pin printhead started the evolution of dot matrix printers. Later, companies like Epson improved the technology by introducing 9-pin and 24-pin printheads for better clarity.

As part of the timeline of printer development, dot matrix printers became very popular in the 1980s and early 1990s. They were widely used in offices, banks, and billing systems because they were cheap to run and could print multi-part forms.

Over time, newer technologies like inkjet and laser printers replaced them in many homes and schools. Still, the impact of dot matrix printers remains strong in specific industries. They are known for their durability, low printing cost, and ability to work in harsh conditions.

Today, while they may seem outdated, their strong build and multi-copy printing keep them alive in industrial and government sectors. The legacy of dot matrix printers continues as they serve where modern printers may fail.

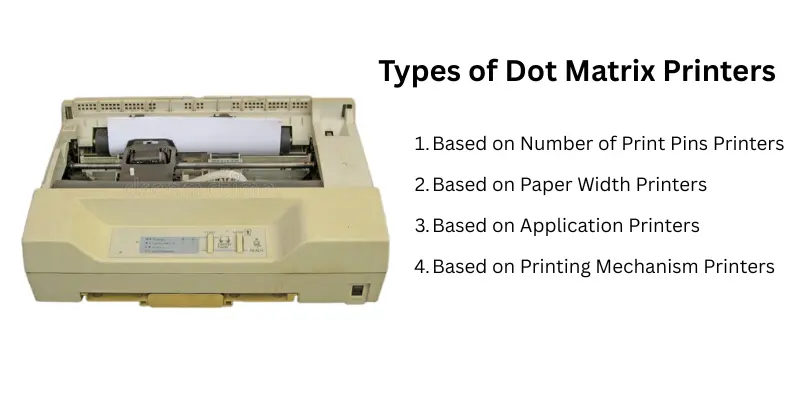

Types of Dot Matrix Printers

There are different types of dot matrix printers, and each one works a little differently based on how many pins it uses or how it feeds paper. These printers fall under the types of impact printers because they strike the paper to create dots.

Here are the main 4 types of Dot Matrix Printer Category:

1. Based on Number of Print Pins Printers
2. Based on Paper Width Printers
3. Based on Application Printers
4. Based on Printing Mechanism Printers

Let’s explore 4 Category of dot matrix printer with details:-

1. Based on Number of Print Pins Printers

Some dot matrix printers use fewer pins, and some use more. The number of pins decides how clear and fast the printing is. More pins usually mean better quality.

Here are 5 Types of Number Pins Pritners:

1. 7-Pin Dot Matrix Printer
2. 9-Pin Dot Matrix Printer
3. 18-Pin Dot Matrix Printer
4. 24-Pin Dot Matrix Printer
5. 48-Pin Dot Matrix Printer

Let’s explore each type of number pin printer:

1. 7-Pin Dot Matrix Printer

The 7-pin dot matrix printer is a basic and older version. It has seven small pins that strike the paper to form characters using dots. The print is not very sharp, but it’s good enough for simple work.

• Example: Small cash registers or early office machines used 7-pin printers to print basic receipts or reports.

2. 9-Pin Dot Matrix Printer

The 9-pin dot matrix printer is known for being fast and simple. It uses nine small pins to form letters and shapes on paper. While the print quality is not very sharp, it’s great for printing basic text like invoices or receipts.

• Example: Many shops and petrol stations use 9-pin printers to print small bills and daily sales reports.

3. 18-Pin Dot Matrix Printer

The 18-pin dot matrix printer is an upgrade from the 9 and 7-pin models. It offers better speed and improved clarity. With more pins, it can form letters with smoother edges and better alignment.

• Example: Medium-sized businesses might use 18-pin printers to print invoices, account statements, and business letters.

4. 24-Pin Dot Matrix Printer

The 24-pin dot matrix printer has more pins, which means it can print with better quality. It creates clearer and more detailed letters compared to the 9-pin type. This type is slower but used when clean-looking prints are needed.

• Example: Offices that print formal documents or pay slips use 24-pin printers to get sharper results.

5. 48-Pin Dot Matrix Printer

The 48-pin dot matrix printer offers high-resolution output using many tiny pins. It prints much sharper text and graphics compared to other models. This type is rare but powerful.

• Example: A design studio or data center that needs both speed and clarity might choose a 48-pin printer for special printing needs.

2. Based on Paper Width Printers

Not all printers print the same size. Some are narrow for small papers, while others are wide for big forms. The paper width changes based on what the printer is meant for.

Here are 4 types of Paper Width Printer:

1. 80-Column Dot Matrix Printer
2. 136-Column Dot Matrix Printer
3. Wide-Format Dot Matrix Printer
4. Narrow-Format Dot Matrix Printer

Let’s explore 4 types of paper width printer:

1. 80-Column Printers

The 80-column dot matrix printer is one of the most common types. It can print 80 characters in one line and is perfect for basic jobs. These printers are small and fit well on office desks.

• Example: Small businesses use 80-column printers to print sales receipts and simple reports.

2. 136-Column Printers

These printers can print 136 characters in one line. They are wider than the 80-column type and are useful for printing big reports or spreadsheets. They are strong and made for heavy work.

• Example: Accounting departments use 136-column dot matrix printers to print full-width financial reports.

3. Wide Format Dot Matrix Printer

These printers are made to handle large paper sizes. They are used for printing long spreadsheets or large forms. They usually have more pins and a wider print area.

• Example: Railway ticket counters often use wide-format dot matrix printers to print full-size passenger ticket forms.

4. Narrow-Format Dot Matrix Printer

The narrow-format dot matrix printer is designed to print on smaller paper. It is light, fast, and fits well in places with limited space. It’s perfect when only short reports or slips are needed.

• Example: Ticket machines and bank counters use narrow-format printers to print slips, tokens, and receipts.

3. Based on Application Printers

Printers are also grouped by what they are used for. These application printers are designed to do one specific job really well like printing tickets or updating passbooks.

Here are 7 Types of application printer:

1. Forms Dot Matrix Printer
2. Label Dot Matrix Printer
3. Receipt Dot Matrix Printer
4. Passbook Dot Matrix Printer
5. Ticket Dot Matrix Printer
6. Report Printers
7. Multi-Copy Form Printers

Let’s explore 7 types of application printer

1. Forms Printers

Forms printers are built to handle multi-part paper forms. They can print through layers of paper at once using strong pin pressure. These are commonly used where duplicate copies are needed.

• Example: Banks and logistics companies use forms printers to print delivery forms and customer slips.

2. Label Printers

Label dot matrix printers are used to print shipping or product labels. They are reliable and can print on sticky or thick paper rolls. This type is tough and can handle many prints daily.

• Example: Warehouses and shipping companies use label printers to print barcode labels and package tags.

3. Receipt Printers

Receipt dot matrix printers are made for fast, small printouts like cash receipts. They are quick, cheap to run, and work well in busy places.

• Example: Retail shops and gas stations use receipt printers to hand out daily purchase receipts.

4. Passbook Printers

Passbook printers are designed for printing in bank passbooks. They can move the paper in different directions to print on thick pages. These printers are compact and precise.

• Example: Banks use passbook printers to update customer passbooks with recent transactions.

5. Ticket Printers

These printers are built to print on ticket paper. Ticket dot matrix printers are durable and perfect for places with continuous ticket printing needs.

• Example: Bus and railway stations use ticket printers to print passenger tickets every day.

6. Report Printers

Report printers are large, fast, and built for heavy-duty work. They can print long reports and large files quickly. These printers are often found in big offices where lots of paper is used every day.

• Example: A school admin office might use report printers to print end-of-term grade sheets and fee records.

7. Multi-Copy Form Printers

Multi-copy form printers are made to print on special paper that creates several copies at once. They are strong and reliable. The print head can press through layers, making exact copies on each sheet.

• Example: Courier services and delivery companies use multi-copy form printers to print receipts where one copy goes to the customer and the other stays in the office.

4. Based on Printing Mechanism

Dot matrix printers can also be grouped by how they print text on paper. This is called the printing mechanism. Some printers print one character at a time, while others print an entire line at once. Each method works differently and is chosen based on speed and printing needs.

Let’s look at the two common types in this category.

1. Line Dot Matrix Printer
2. Serial Dot Matrix Printer (Character Printer)

Let’s explore 2 types of mechanism printer:

1. Line Dot Matrix Printer

This type prints an entire line at once instead of one character at a time. Line printers are faster and are often used in big companies where lots of printing is done quickly. They’re useful for printing reports and data sheets.

• Example: A warehouse might use a line printer to print shipping labels and daily product logs.

2. Serial Dot Matrix Printer (Character Printer)

The character printer, also called a serial dot matrix printer, prints one character at a time from left to right. It moves line by line to finish the page. This type is slower but offers better control for form printing.

• Example: Government offices use serial printers to print forms, ID slips, and multi-copy documents.

Each of these pin-based dot matrix printers serves a different purpose based on printing speed, quality, and paper size. Choosing the right one depends on the task and place where it’s used.

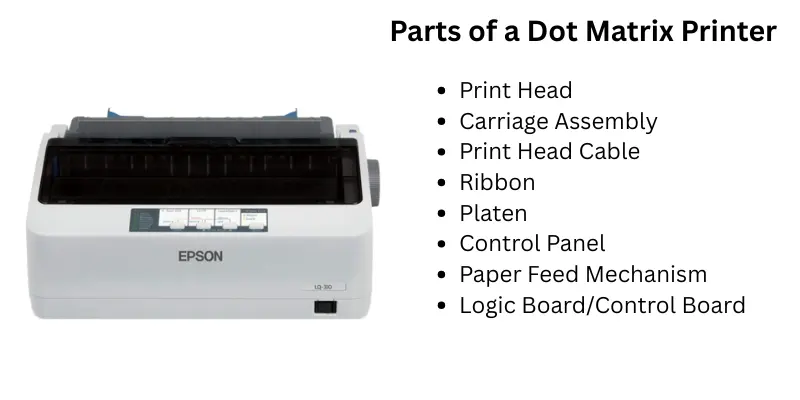

Parts of a Dot Matrix Printer

Dot matrix printers may look simple, but they have several important parts that work together to print words and pictures. These dot matrix printer components are built to be strong and last a long time, even with daily use. Below are the main impact printer parts you’ll find inside a dot matrix printer.

Here are common part of dot matrix printer:

1. Print Head
2. Carriage Assembly
3. Print Head Cable
4. Ribbon
5. Platen
6. Control Panel
7. Paper Feed Mechanism
8. Logic Board/Control Board

Let’s explore the main parts of dot matrix printer:

1. Print Head

The print head is one of the most important parts of a dot matrix printer. It holds tiny pins that strike the ink ribbon and form dots on paper. This part moves back and forth during printing, building each line with dot patterns.

2. Carriage Assembly

The carriage assembly holds the print head and helps it move across the page. This part glides from left to right to allow the pins to print each letter or shape. It’s a key piece in the impact printer mechanism.

3. Print Head Cable

The print head cable connects the print head to the printer’s control board. It sends signals that tell the pins when to strike. Without this cable, the print head won’t know what to print or where to print it.

4. Ribbon

The printer ribbon is an ink-covered strip that sits between the print head and the paper. When the pins hit it, ink transfers to the page. It’s usually inside a cartridge and needs replacing when it dries out.

5. Platen

The platen roller is the round bar behind the paper that helps feed it through the printer. It also gives support while the pins press the ribbon against the paper. This part makes sure the print looks even and smooth.

6. Control Panel

The control panel is the set of buttons and lights on the front of the printer. It helps users start or stop printing, check errors, and control basic settings. The control panel functions are simple and easy to use.

7. Paper Feed Mechanism

The paper feed mechanism includes rollers and gears that move paper through the printer. It works with single sheets or special paper with holes. This part ensures the paper feeds in the right direction without jamming.

8. Logic Board / Control Board

The logic board in dot matrix printers is like the brain of the machine. It processes signals and sends instructions to all parts. From print head movement to ribbon strikes, every command starts at the control board.

How Dot Matrix Printers Work

The working of dot matrix printers is based on a simple and smart idea. These printers use pin-based printing technology to create letters and pictures using tiny dots. Each dot is made by a small metal pin hitting an ink ribbon and pressing it onto the paper.

Inside the printer, there’s a print head that holds these pins. Depending on the printer type, it may have 7, 9, 18, 24, or even 48 pins. The printer head moves back and forth across the paper, striking the ribbon to make patterns of dots. These patterns form words, numbers, and even basic images.

The dot matrix printing process starts when the printer receives a command from the computer. The logic board sends signals to the pins, telling them when and where to strike. The ink ribbon sits between the pins and the paper, helping transfer the dots clearly onto the sheet.

At the same time, the paper feed mechanism and platen roller move the paper up line by line. The tractor feed system holds the paper in place, especially if the paper has holes on the sides. This keeps the paper from slipping or jamming during the print.

Unlike laser or inkjet printers, the mechanism of dot matrix printers allows them to print on multi-layer paper. This means they can create several copies at once perfect for invoices, forms, and delivery receipts.

This is how impact printers work by physically touching the paper to leave marks. Though they may seem noisy and slow, their ability to work in rough environments and print carbon copies still makes them useful in many places.

Features of Dot Matrix Printers

Dot matrix printers may look old, but they still come with smart features that make them useful in many places. These key features of dot matrix printers are the reason why some offices, banks, and service counters still use them today. Let’s explore the features of dot matrix printers:

1. Multi-Copy Printing

One of the best impact printer characteristics is the ability to print on carbon-copy paper. A dot matrix printer can create 2–5 copies in one go. This is helpful for printing invoices, receipts, and forms that need to be shared.

• Example: Delivery companies use these printers to give one copy to the customer and keep the other for records.

2. Works on Continuous Paper

Dot matrix printers can handle long sheets of paper with holes on the sides. This is called continuous paper printing. It lets the printer work without stopping between pages.

• Example: Large billing systems use continuous paper to print hundreds of pages without reloading.

3. Low Printing Cost

The printing cost of dot matrix printers is very low. The ink ribbon lasts longer than cartridges used in inkjet or laser printers. That makes it a great choice for places that print a lot every day.

• Example: Small shops prefer dot matrix printers to save money on ink.

4. Durable and Long-Lasting

Dot matrix durability is one of its strongest features. These printers are built to last for many years. They can handle dust, heat, and heavy use without breaking down easily.

• Example: Government offices and factories use these printers because they keep working even in tough environments.

5. Rugged Design

These printers have a strong body and simple parts. Their rugged printer design means fewer problems and less need for repairs. They are perfect for busy places like warehouses and banks.

• Example: A dusty warehouse still relies on dot matrix printers because they don’t get damaged easily.

6. Energy Efficient

Dot matrix printers use very little power compared to other printers. Their energy efficiency in printers helps reduce electricity use, especially when printing long reports or documents.

• Example: Offices that print large amounts daily prefer dot matrix printers for their low energy use.

7. Easy to Maintain

Dot matrix printers are simple machines with fewer moving parts. That makes them easier to clean and fix. Users can change ribbons or feed paper without expert help.

• Example: A store clerk can easily replace the ribbon without calling a technician.

These features of dot matrix printers show why they are still used today. They may not print in color or give photo-quality results, but their strength, low cost, and multi-copy ability make them valuable in many industries.

Tips for Using a Dot Matrix Printer

Dot matrix printers are useful, especially for multi-copy and continuous paper printing. But to keep them working well, users need to follow some simple tips. These tips help in saving money, avoiding paper jams, and making the printer last longer. Whether it’s in a bank, shop, or office, these tips will make your dot matrix printing easier and better.

Here are tips for using a dot matrix printer:

• Clean the print head with a soft brush or cloth regularly.
• It helps improve the printing quality of dot matrix printers and keeps the dots sharp.
• If the prints look faded, change the ribbon right away.
• Regular ribbon replacement keeps printing clear and professional.
• Always use flat, clean paper designed for dot matrix printers.
• It reduces jams and improves dot matrix printer performance.
• Load paper evenly to avoid misalignment or overlapping lines.
• Use the side guides to ensure perfect paper alignment every time.
• Do not place the printer near direct sunlight or hot machines.
• Heat can damage the internal parts and slow printer efficiency.
• Make sure the carriage slides freely without sticking.
• This ensures smooth dot-by-dot printing without skips.
• If using long paper, make sure the holes line up with the tractor feed.
• Misaligned paper can cause jams or crooked prints.
• Save energy and protect the printer by switching it off when idle.
• This helps improve the life of dot matrix printer components.
• Dust can block the print head and paper feed.
• Use a dust cover to keep your printer safe when not printing.

Advantages and Disadvantages of Dot Matrix Printers

Dot matrix printers are one of the oldest types of printers still in use today. They work using pins that press through an ink ribbon to form letters and images. Many businesses still use them because of their special features. But like every machine, they have both good sides and some downsides too.

Below are the advantages and disadvantages of dot matrix printers explained in simple words:

The pros of dot matrix printers make them a solid choice for special tasks like form printing and carbon copies. However, the drawbacks of dot matrix printers show that they may not be the best fit for everyday or modern home use.

FAQs About Dot Matrix Printers

Here are some of the most common questions people ask about dot matrix printers. Each answer is written in a simple and helpful way for better understanding.

Conclusion

Dot matrix printers may look old, but they still play an important role in many workplaces. They are strong, easy to maintain, and great for printing multi-copy forms. From shops and banks to factories, their cost-effective printing makes them a smart choice for daily business tasks.

These printers may not offer the sharpest print, but they win in durability and low running costs. With the right care, like changing ribbons and keeping the print head clean, they can last for years.

In short, dot matrix printers are a great pick for places that need simple, long-lasting, and reliable printing. Whether printing bills or reports, they still meet the needs of many users around the world.
