Mesh Topology

Published: 11 Aug 2025

Mesh topology connects devices in a network like a web. Every device links to others, creating a strong network architecture. It ensures reliable network connectivity. This setup powers modern systems like smart homes and the Internet of Things (IoT). Why is mesh topology important? It provides a decentralized network that stays strong even if one part fails. In this section, explain in detail what is mesh topology, the history of mesh topology, the types of mesh topology, and its benefits. Readers will learn how mesh networks improve network reliability and support scalable networks.

Table of Content

History of Mesh Topology
How Mesh Topology Works
Types of Mesh Topology
1. Full Mesh Topology
2. Partial Mesh Topology
Applications of Mesh Topology
Key Components of Mesh Network
Security in Mesh Topology
Future of Mesh Networking
Advantages and Disadvantages of Mesh Topology
Common FAQs about Mesh Topology
Conclusion

History of Mesh Topology

The idea of mesh topology started many decades ago when early computer scientists explored ways to make networks more reliable. At that time, most networks followed simple designs like bus topology or star topology comparison. These systems worked, but had a big weakness. If the main connection failed, the whole network would stop working.

In the 1960s and 1970s, researchers working on military and government projects wanted a network that could survive even if part of it was damaged. This led to the birth of the decentralized network concept. They tested systems where each computer or network node connected directly to others. The goal was to build a network with fault tolerance so that communication could continue during emergencies.

The United States military played a big role in developing early mesh networking ideas. They needed a redundant network for secure and stable communication in war zones. These early designs later influenced the internet itself. A famous project called ARPANET used some of these principles and showed how interconnected nodes could share data quickly and safely.

In the 1980s and 1990s, technology improved, and mesh topology began to be used in industrial and commercial systems. Businesses saw the value in having network redundancy. They understood that a high availability network could protect them from downtime and data loss. During this time, full mesh topology and partial mesh topology became recognized as the two main types. A full mesh connects every node directly, while a partial mesh connected only some nodes directly to save cost.

The rise of wireless communication in the 2000s gave mesh topology a new boost. Wireless mesh network designs made it possible to connect homes, offices, and even entire cities without miles of cables. Mesh routers, Zigbee mesh, Z-Wave mesh, and Wi-Fi mesh became common for smart home network setups. These systems offered better network coverage and self-healing network abilities, where devices could reroute data automatically if one path failed.

Today, mesh topology is part of many modern systems, including IoT mesh network projects, industrial IoT, smart city network plans, and disaster recovery network designs. Its history shows how the need for network resilience, network scalability, and network performance has shaped technology over time. From military beginnings to home mesh network systems, mesh networking continues to grow because it offers strong network connectivity, high fault tolerance, and reliable data transmission for the future.

How Mesh Topology Works

Mesh topology is a network design where each device links to other devices directly. It is built to make network connectivity strong and reliable. The steps below show how a mesh network moves data and keeps the system working.

Nodes join the network. Nodes are devices like mesh routers or sensors. They are network nodes and mesh network nodes. Each node learns about its neighbors.
Nodes form links to neighbors. These are direct connections between interconnected nodes. The links let data travel in many ways across the network.
Nodes share routing information. They use mesh routing and network protocols to learn the best paths. They use dynamic routing rules to pick which path to use.
A device starts data transmission. The sending node looks for a route. In a peer to peer network the node chooses a nearby node to send the first packet.
Data moves in hops. The network uses a multi hop network design. Each node forwards the packet to the next node. The packet moves step by step until it reaches the destination.
The network checks path quality. Nodes watch network performance. They watch signal strength and network latency. If a path is slow the nodes pick a better route.
The network heals itself when a node fails. A self healing network finds other paths automatically. This gives network redundancy and fault tolerance. The system keeps working even when one node stops.
Mesh networks handle wireless and wired links. A wireless mesh network uses Wi Fi mesh or Zigbee mesh or Z Wave mesh. A wired mesh uses cables for stable data transmission.
Devices use standards and protocols. Some networks use IEEE 802.11s for Wi Fi mesh. Other networks use protocols suited to IoT mesh network devices. These rules help nodes talk the same language.
Security runs at every step. The network uses encryption in mesh networks and network authentication to keep data safe. Good network security reduces risks from outside threats.
The system scales when new nodes join. Network scalability is easy because new mesh network nodes add more links. This improves network coverage and reduces dead zones.
Tools manage network health. Network monitoring and load balancing help control traffic. Bandwidth management keeps services like streaming and gaming smooth.
Administrators tune the network for goals. They tune for low network latency or for high throughput. They use network design choices to match needs for a smart home network or for industrial IoT.
The result is a resilient and flexible network. Mesh topology offers strong network reliability and good network connectivity. It is a choice for many modern systems that need high availability network behavior.

Types of Mesh Topology

There are two main types of mesh topology. These are full mesh topology and partial mesh topology. Each type connects network nodes in a different way and each has its own advantages and disadvantages. Both can be used in a wired or wireless mesh network and both can work with different network protocols.

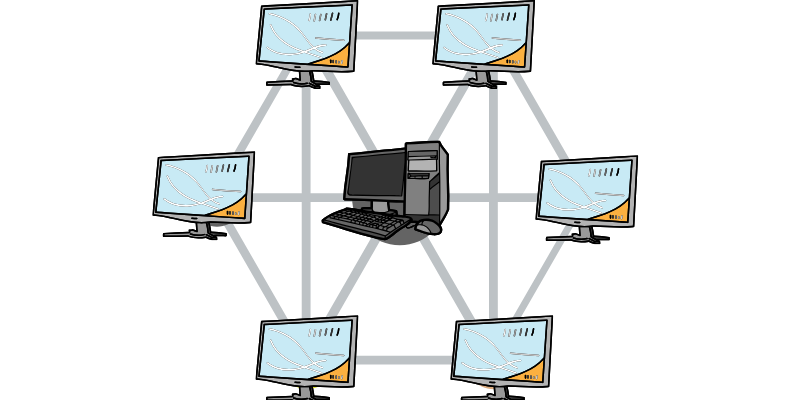

1. Full Mesh Topology

In a full mesh topology, every device connects directly to every other device in the network. It is designed to provide complete network connectivity and high network reliability. This setup creates many redundant network paths so if one path fails there is another available. This feature gives strong network redundancy and fault tolerance.

Uses of Full Mesh Topology

It is used in high availability networks where downtime is not acceptable.
It is common in disaster recovery networks to ensure network resilience.
It is used in military tactical mesh networks for secure and reliable communication.
It is applied in data centers that require low network latency and fast data transmission.
It is used in financial systems where network reliability is critical.
It is useful for mission critical systems that cannot afford network node failure.

Advantages of Full Mesh Topology
It offers maximum network redundancy since each network node connects to every other node. It provides strong fault tolerance and keeps the network operational even when one connection fails. It improves network performance because there are multiple paths for data packet routing. It enhances network security when encryption in mesh networks is used on all connections. It supports fast load balancing and efficient bandwidth management.

Advantages of Full Mesh Topology

It offers maximum network redundancy since each network node connects to every other node.
It provides strong fault tolerance and keeps the network operational even when one connection fails.
It improves network performance because there are multiple paths for data packet routing.
It enhances network security when encryption in mesh networks is used on all connections.
It supports fast load balancing and efficient bandwidth management.

Disadvantages of Full Mesh Topology
It requires more network infrastructure which increases the mesh network cost. It takes more time for network planning and network maintenance. It needs more mesh network hardware such as mesh routers and cables. It is not always cost efficient for very large scale mesh networks. It can be complex to configure and manage in an enterprise mesh network.

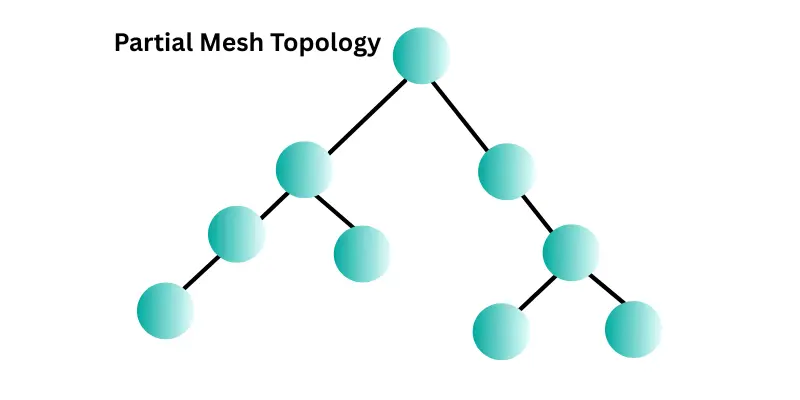

2. Partial Mesh Topology

In a partial mesh topology, some devices connect directly to all other devices, and some devices connect only to selected devices. This design still supports mesh routing and self healing network features but uses fewer connections. It is a good balance between cost efficiency and network reliability.

Uses of Partial Mesh Topology

It is used in large scale mesh networks such as smart city networks and community mesh networks.
It is suitable for industrial IoT systems that need both network scalability and cost efficiency.
It is common in smart home networks using Wi Fi mesh, Zigbee mesh, or Z Wave mesh.
It is applied in rural area networks where full connectivity to every node is not needed.
It is used in wireless sensor networks for environmental monitoring and precision agriculture networks.

Advantages of Partial Mesh Topology
It is more cost efficient compared to full mesh topology. It allows easier network expansion without linking every node directly. It supports self healing network features through mesh routing and dynamic routing. It reduces network congestion by enabling efficient load balancing. It maintains good network reliability while using fewer connections.

Disadvantages of Partial Mesh Topology
It has lower network redundancy compared to full mesh topology It can have slightly higher network latency if some paths are longer It may depend more on certain key network nodes which can impact performance if they fail It can be less suitable for mission critical systems that require the highest network resilience It might need more network optimization in very busy mesh network applications

Applications of Mesh Topology

Mesh topology is widely used in many different sectors because it offers strong network connectivity, high reliability, and self healing capabilities. Below are twenty applications where this network topology is commonly applied.

It is used in smart home networks to connect devices through Wi Fi mesh, Zigbee mesh, and Z Wave mesh.
It is applied in industrial IoT to monitor machines and improve network performance in factories.
It is useful in smart city networks for traffic management and public safety systems.
It is used in community mesh networks to provide internet coverage in rural areas.
It is applied in disaster recovery networks to restore communication during emergencies.
It is used in tactical mesh networks for secure military communication.
It is applied in mesh network for drones to ensure smooth node communication in flight.
It is used in vehicular mesh networks to support connected car technology.
It is applied in precision agriculture networks to monitor soil and crop conditions.
It is used in logistics networks to track goods in warehouses and transportation.
It is applied in mesh network for healthcare to connect hospital equipment and patient monitoring systems.
It is used in education networks to provide reliable connectivity in schools.
It is applied in mesh network for retail to manage inventory and point of sale systems.
It is used in mesh network for hospitality to give guests strong wireless coverage.
It is applied in mesh network for surveillance to connect security cameras across a large area.
It is used in mesh network for smart lighting in cities and buildings.
It is applied in mesh network for building management to control heating and cooling systems.
It is used in mesh network for cloud computing to support data transmission and load balancing.
It is applied in mesh network for edge computing to process data closer to the source.
It is used in mesh network for AI and machine learning to transfer large volumes of data in real time.

Key Components of Mesh Network

A mesh network has many important parts that work together to provide strong network connectivity and good network performance. Here are 20 key components found in most mesh networks.

Mesh routers are the main devices that manage wireless coverage and connect network nodes.
Network nodes are devices like sensors, computers, or other gadgets that send and receive data.
Mesh network nodes work together to forward data using mesh routing and dynamic routing.
Wireless mesh networks use Wi Fi mesh technology to connect devices without cables.
Zigbee mesh provides low power wireless communication for smart home devices.
Z Wave mesh is another wireless standard used in IoT mesh networks.
Mesh network extenders increase the network coverage area and reduce dead zones.
Network protocols are rules devices use to communicate and share data safely.
Mesh network software helps configure, manage, and monitor the network health.
Network monitoring tools track network performance and detect network congestion.
Load balancing spreads data traffic evenly to prevent slow network latency.
Bandwidth management controls the flow of data to keep network throughput high.
Network security includes encryption in mesh networks to protect data transmission.
Network authentication ensures that only trusted devices join the mesh network.
Self healing network features allow the mesh to reroute data if one node fails.
Multi hop network design means data passes through several nodes before reaching the destination.
Mesh network hardware includes cables, antennas, and other physical parts of the network infrastructure.
Network expansion allows adding more mesh network nodes to grow the network easily.
Network design involves planning how nodes connect to balance cost efficiency and network reliability.
Network maintenance is ongoing work to keep the mesh network running smoothly and securely.

Security in Mesh Topology

Security in mesh topology is very important to keep data safe and protect the network from attacks. Because mesh networks have many interconnected nodes, there are more places where risks can happen. It is important to use strong network security to guard these weak points.

One key part of security is encryption in mesh networks. Encryption changes data into a secret code before sending it. This keeps data transmission private even if someone tries to listen. Encryption helps keep wireless mesh networks safe such as Wi Fi mesh, Zigbee mesh, and Z Wave mesh systems.

Another important part is network authentication. It is a process to check if a device is allowed to join the network. Only trusted mesh network nodes can connect and share information. This reduces the chance of hackers entering the mesh network.

Mesh topology uses network protocols that have built-in security features. These protocols control how devices communicate and help stop unauthorized access. Dynamic routing and mesh routing also support security by choosing safe and efficient paths for data.

Self healing network features add another layer of protection. If a node fails or is attacked, the mesh network can reroute data through other paths. This keeps the network running and protects against disruptions.

Network monitoring tools help watch for unusual activity that may show a security threat. They can alert administrators to take action quickly to fix problems. Network management also plays a big role in keeping security up to date with regular updates and patches.

In mesh topology for IoT mesh networks or industrial IoT systems, security is even more critical because many devices handle sensitive data. Strong network security practices help protect smart home networks, smart city networks, and enterprise mesh networks from cyber threats.

Using multiple layers of security such as encryption, authentication, monitoring, and secure network design creates a reliable and safe mesh network. This gives users confidence in the network performance and protects data from being stolen or damaged.

Future of Mesh Networking

The future of mesh networking looks very promising as new technologies and applications continue to grow. Below are key points about where mesh networking is heading next.

It is expected that mesh network scalability will improve to support millions of network nodes.
There are new mesh network protocols being developed to increase data transmission speed and reduce network latency.
They are making mesh networks more energy efficient to help low power mesh networks last longer.
There are advances in mesh routing algorithms to optimize data packet routing and improve network performance.
They are expanding mesh networking use in smart city networks for better public safety and traffic management.
There are growing applications of mesh topology in industrial IoT to support manufacturing automation.
They are increasing the use of mesh networks for smart home networks with better wireless coverage and signal strength.
It is expected mesh network security will get stronger with better encryption in mesh networks and network authentication methods.
They are integrating mesh networking with 5G mesh networks for faster and more reliable communication.
There are plans to use mesh networks in vehicular mesh networks to improve transportation safety and efficiency.
They are developing mesh networks for precision agriculture networks to help farmers monitor crops more effectively.
It is expected mesh network software will become smarter with AI and machine learning for automatic network optimization.
They are focusing on mesh network cost reduction to make large scale mesh networks more affordable.
There are advances in mesh network hardware to support better network infrastructure and reduce network congestion.
They are improving mesh network monitoring tools for real time detection of problems and faster network maintenance.
It is expected that mesh networks will play a bigger role in cloud computing and edge computing to handle more data locally.
They are making mesh networking easier to install and manage for home mesh networks and enterprise mesh networks.
There are ongoing efforts to expand mesh network use in remote work and telecommuting to improve network reliability.
They are exploring new mesh network applications in healthcare, education, and public safety sectors.
It is expected mesh networks will become a key part of future smart grids and smart lighting systems.

Advantages and Disadvantages of Mesh Topology

Mesh topology offers many benefits but also some challenges. Here are the main advantages and disadvantages to consider.

Advantages of Mesh Topology
It is highly reliable because network redundancy allows multiple data paths. It offers strong fault tolerance since failure of one network node does not stop the whole network. It improves network performance with direct data packet routing between network nodes. It supports self healing network features that automatically reroute data if one path fails. It enhances network security using encryption in mesh networks and network authentication. It provides good network scalability as new mesh network nodes can join easily It reduces network congestion by using load balancing and bandwidth management It delivers wide network coverage in wireless mesh networks like Wi Fi mesh and Zigbee mesh It works well for both small smart home networks and large scale mesh networks such as smart city networks It supports different network protocols and mesh routing algorithms for flexible network design

Advantages of Mesh Topology

It is highly reliable because network redundancy allows multiple data paths.
It offers strong fault tolerance since failure of one network node does not stop the whole network.
It improves network performance with direct data packet routing between network nodes.
It supports self healing network features that automatically reroute data if one path fails.
It enhances network security using encryption in mesh networks and network authentication.
It provides good network scalability as new mesh network nodes can join easily
It reduces network congestion by using load balancing and bandwidth management
It delivers wide network coverage in wireless mesh networks like Wi Fi mesh and Zigbee mesh
It works well for both small smart home networks and large scale mesh networks such as smart city networks
It supports different network protocols and mesh routing algorithms for flexible network design

Disadvantages of Mesh Topology
It is expensive because mesh network hardware and infrastructure cost more than other topologies It requires complex network planning and network maintenance due to many interconnected nodes It can be difficult to manage in very large networks like enterprise mesh networks It uses more bandwidth as data may travel multiple hops before reaching the destination It increases network latency if routing is not optimized properly in multi hop networks It may need advanced mesh network software and network monitoring tools to keep network performance high It consumes more power in low power mesh networks especially in wireless sensor networks It is not always cost efficient for all applications especially when network reliability needs are low It can be challenging to secure every node in the network against cyber threats It might require specialized knowledge for network administrators to configure and troubleshoot

Disadvantages of Mesh Topology

It is expensive because mesh network hardware and infrastructure cost more than other topologies
It requires complex network planning and network maintenance due to many interconnected nodes
It can be difficult to manage in very large networks like enterprise mesh networks
It uses more bandwidth as data may travel multiple hops before reaching the destination
It increases network latency if routing is not optimized properly in multi hop networks
It may need advanced mesh network software and network monitoring tools to keep network performance high
It consumes more power in low power mesh networks especially in wireless sensor networks
It is not always cost efficient for all applications especially when network reliability needs are low
It can be challenging to secure every node in the network against cyber threats
It might require specialized knowledge for network administrators to configure and troubleshoot

Common FAQs about Mesh Topology

Mesh topology is a popular network design used in many places like smart homes, industries, and cities. It helps devices connect well and share data fast. Many people want to know how mesh topology works and why it is important for strong and safe networks. Below are some simple questions and answers to help understand mesh topology better.

How does mesh topology improve network reliability?

It is because mesh topology creates network redundancy. If one network node fails, data can travel other paths. This fault tolerance helps keep the network working without interruption.

What are the types of mesh topology?

They are full mesh topology and partial mesh topology. Full mesh topology connects every device to all others. Partial mesh topology connects some devices directly and others through a few connections.

Where is mesh topology used?

Mesh topology is used in smart home networks, industrial IoT, smart city networks, disaster recovery networks, and tactical mesh networks. It is good for networks that need high availability and wide wireless coverage.

What are the advantages of mesh topology?

They are strong network reliability, self healing network features, network scalability, high network performance, and better network security with encryption in mesh networks and network authentication.

What are the disadvantages of mesh topology?

They are higher mesh network cost, complex network planning, possible network latency in multi hop networks, more power use in wireless sensor networks, and need for expert network maintenance.

How does mesh routing work?

Mesh routing uses dynamic routing to find the best path for data packets. It helps balance network load and reduce congestion. This keeps data transmission smooth and improves network performance.

Can mesh topology work with wireless networks?

Yes, it works well with wireless mesh networks like Wi Fi mesh, Zigbee mesh, and Z Wave mesh. These help provide wide wireless coverage and make network expansion easy.

Is mesh topology secure?

Mesh topology supports strong network security with encryption in mesh networks and network authentication. Network monitoring and network management tools help protect the network from threats.

How scalable is mesh topology?

Mesh topology is very scalable. It allows network expansion by adding more mesh network nodes. This helps cover larger areas and supports growing smart home or enterprise mesh networks.

Conclusion

Mesh topology is a strong and reliable network design that connects devices with multiple paths to ensure smooth data transmission. It offers excellent network redundancy and fault tolerance, making it ideal for smart homes, industrial IoT, and smart city networks. With built-in security features like encryption in mesh networks and network authentication, it keeps data safe. Though it needs careful planning and more hardware, its benefits in scalability and performance make it a top choice for many applications.
